Installing a shade sail attached to roof structures elevates your outdoor living space by converting open patios into cool, breezy retreats while leveraging existing building strength. Executed with precise technical hardware and robust structural calculations, this specialized mounting technique provides a durable shade canopy that withstands high winds and heavy downpours throughout the changing seasons.

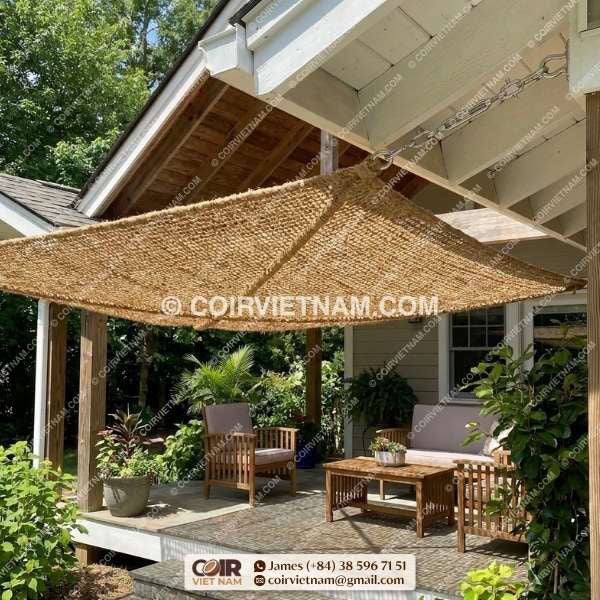

1. 5 Steps To Secure A Shade Sail Attached To Roof Safely
Securing a shade sail attached to roof framing requires five critical phases: locating the structural rafters, selecting marine-grade bracket hardware, calculating rain runoff incline, applying industrial waterproof sealants, and pre-tensioning the turnbuckles. By carefully executing each technical step, you prevent structural roof deflection, safeguard your wood framing from dry rot, and create a highly resilient patio canopy. This architectural approach avoids common installation failures, ensuring your canopy stays securely anchored even during heavy storms.
Step 1: Structural Rafter Identification and Load Mapping
Before installing any hardware, you must locate the load-bearing rafters or trusses under the roof decking. Standard roof fascia boards and decorative trim lack the structural capacity to handle the high lateral forces created by a tensioned fabric canopy. Using a stud finder or inspecting the rafter tails from under the eaves helps identify the exact centers of 2x6 or 2x8 wood rafters, which are typically spaced either 16 inches or 24 inches apart.
Once identified, marking these locations ensures that your anchor brackets connect directly into the solid wood core of the rafter rather than thin plywood sheathing. This step distributes the tension evenly across your home structural skeleton, protecting the roof edge from bowing under heavy winds.
Step 2: Selecting Specialized Fascia and Rafter Brackets
Safely attaching a canopy requires heavy-duty marine hardware rather than basic residential screws. You should select specialized roof brackets, such as steel fascia supports or rafter-connected roof mounts, made from 316-grade stainless steel to ensure long-term rust prevention. These specialized brackets extend past the roof shingles, allowing the sail to hook directly into the home main framework without putting pressure on gutters or shingles.
Standard eye plates can easily pull loose under heavy loads. Choosing custom fascia brackets with pre-welded support sleeves provides the structural strength needed to withstand both shear and pullout forces, keeping your backyard canopy incredibly secure.
Step 3: Calculating Incline Angles for Water Drainage
Water accumulation on flat fabric canopies is a leading cause of roof bracket failures and torn seams. To ensure proper drainage, you must install the shade sail with a minimum incline of 20 to 30 degrees between the high connection points on the roof and the low points on the opposing ground posts. For a standard 10ft x 16ft rectangular canopy, this slope translates to a height difference of at least 3.5 to 4.5 feet between the opposing attachment corners.
This steep angle allows heavy rainwater to run off easily, preventing water pooling. Avoiding water accumulation on the fabric protects your roof brackets from carrying hundreds of pounds of unnecessary stagnant water load.
Step 4: Waterproofing and Bracket Sealing
Every penetration through your roof sheathing or fascia board must be meticulously sealed to prevent mold, rot, and interior leaks. After pre-drilling pilot holes into the rafter centers, fill the cavities with commercial-grade polyurethane roofing sealant or flexible butyl rubber flashing tape. When mounting the brackets, position a thick layer of butyl tape behind the metal plate to form a waterproof barrier as the screws are tightened down.
Once the heavy-duty lag bolts are secured, apply another layer of UV-resistant silicone caulk over the bolt heads and surrounding bracket edges. This dual-layer waterproofing system ensures your home roof remain completely leak-free for years to come.
Step 5: Rigging, Tensioning, and Safety Chain Integration
The final step involves linking the canopy corner rings to your roof brackets using heavy-duty stainless steel turnbuckles and safety chains. Turnbuckles allow you to adjust the tension on each corner, tightening the fabric until it is as rigid as a drum head. Properly tensioned canopies should be flat and tight, with no sagging center areas or loose, flapping edges.
Integrating a safety chain alongside each turnbuckle provides a reliable backup connection in case of extreme weather. This safety chain ensures the sail remains securely attached to the roof mount, preventing damage to your property during unexpected wind storms.
| Installation Step | Core Objective | Minimum Technical Target | Safety Benefit |
|---|---|---|---|
| 1. Rafter Mapping | Locate load-bearing structural wood | Identify centers of 2x6 or 2x8 timber | Prevents fascia tearing and roof deflection |
| 2. Bracket Selection | Provide rust-proof structural anchor points | 316 stainless steel or hot-dip galvanized steel | Resists high shear and pullout forces |
| 3. Incline Calculation | Determine height difference for drainage | 20 to 30 degree slope (approx. 3.5 to 4.5 ft drops) | Prevents water pooling and fabric stretching |
| 4. Waterproof Sealing | Create a leak-proof barrier at penetrations | Butyl rubber tape + polyurethane roofing sealant | Protects rafters and eaves from rot and decay |
| 5. Tension Rigging | Apply uniform tension across the fabric | 100 to 150 lbs of pre-tension force per corner | Minimizes wind flapping and fabric wear |
2. Structural Engineering and Wind Load Calculations for Roof Mounts
Attaching structural anchors to residential roofs involves deep mechanical forces that must be carefully calculated. A tensioned shade sail acts as a giant wing, catching passing winds and generating massive aerodynamic uplift and drag forces that are transmitted directly to your home rafters. Under standard conditions, a medium-sized canopy can exert a continuous lateral force of 500 to 800 pounds at each corner, which can surge to over 1500 pounds during sudden wind gusts of 45 to 50 miles per hour.
Fascia boards are designed to support gutters and light trim, not to act as structural anchors. Attaching a sail directly to fascia boards without rafter brackets can pull the wood away from the roof edge, causing expensive structural damage and leaving your roof vulnerable to leaks. To prevent this, brackets must span across the fascia and connect directly into the solid wood centers of your rafters, transferring the mechanical tension directly to your home main structural frame.
For large open areas like driveways or pool decks, using a sturdy, pre-tensioned coir shade sail provides a highly reliable, wind-resistant solution. The natural textured weave of coconut coir allows wind to pass through, reducing drag and aerodynamic uplift forces by up to 40 percent compared to solid synthetic sails, which helps protect your roof brackets from excessive wind stress.
Calculating Mechanical Forces and Angle Vectors
The direction of your tension lines plays a crucial role in the lifespan of your roof brackets. If the canopy pulls at an angle perpendicular to the rafter grain, it exerts high shear forces that can weaken the wood fibers over time. Installing the brackets so that the tension lines align closely with the natural grain of the wood rafter optimizes load distribution, allowing your home framework to absorb the weight without stressing the roof edge.
Architects recommend using heavy-duty turnbuckles with integrated tension meters to monitor and adjust the pull on each corner. Maintaining a consistent tension of 100 to 120 pounds per corner prevents the fabric from sagging, keeping your backyard canopy clean, flat, and perfectly stable.
Reduce Wind Stress with a Breathable Coir Shade Sail
For roof-mounted patios, pool decks, driveways, and open outdoor areas, a coir shade sail provides a naturally ventilated canopy that helps filter sunlight, release trapped heat, and reduce excessive wind drag on your mounting points.
- ✓ Porous coconut coir weave allows air to pass through, helping reduce uplift pressure compared with solid synthetic coverings.
- ✓ Designed for patios, pergolas, pool decks, cafés, resorts, garden lounges, and roof-adjacent outdoor shade projects.
- ✓ Natural rustic texture blends beautifully with timber, stone, tropical gardens, and resort-style exterior designs.
3. Material Comparison: Natural Coir vs Synthetic Shade Fabrics
When selecting outdoor canopies, homeowners often choose between natural, sustainably sourced fibers and synthetic materials like high-density polyethylene (HDPE). While synthetic sails are common, they are made from petroleum-based plastics that can degrade and fade under constant sun exposure, releasing microplastic dust into your backyard. On the other hand, natural coir shade sails are made from durable coconut husk fibers, offering a highly sustainable, biodegradable solution that blends beautifully with natural landscapes.
Coir fiber is naturally resistant to saltwater, mold, and rot because of its high concentration of lignin, a natural organic polymer found in matured coconut shells. This organic structure makes coir incredibly durable, allowing it to withstand seasonal rains and intense sun without losing its shape or strength. Choosing coir over synthetic materials helps reduce your ecological footprint while bringing a warm, rustic, resort-style feel to your outdoor living spaces.
Natural materials are also highly versatile around your home and garden. For example, using organic coconut husk chips as a moisture-retaining mulching layer, or installing a robust coir net for erosion control, offers a beautiful, eco-friendly way to nurture your garden soil while maintaining a cohesive, natural landscape design.
Coir Shade Sail
Made from durable coconut husk fibers, the coir shade sail creates a naturally ventilated canopy for patios, pool decks, pergolas, cafés, and resort landscapes. Its porous weave filters sunlight while allowing warm air and passing breezes to move through the shaded area.
Order on Instagram & Get 10% Off
Coir Curtain
The coir curtain adds privacy, filtered shade, and gentle wind protection without closing off the outdoor space. Its organic coconut fiber texture pairs naturally with coir shade sails, timber decks, garden patios, balconies, and open-air resort seating.
Order on Instagram & Get 10% Off
Round Coir Parasol
The round coir parasol brings a warm tropical look to garden lounges, poolside spaces, cafés, beach resorts, and outdoor dining areas. Its natural coconut fiber canopy softens harsh sunlight while maintaining the relaxed, rustic character of an eco-friendly exterior design.
Order on Instagram & Get 10% OffNatural Temperature Regulation and Breeze Filtering
The fibrous, porous structure of coconut coir provides exceptional natural cooling. Unlike solid plastic tarps that trap hot air underneath, a woven coir canopy allows heat to rise and escape while filtering cool breezes through its fibers. This natural ventilation can lower the temperature under your patio cover by up to 10 degrees Fahrenheit, creating a refreshing, comfortable outdoor microclimate during hot summer afternoons.
When planning your outdoor living spaces, you can easily pair your shade sail with other natural plant-fiber accents. Hanging an elegant sliding coir curtain provides excellent privacy and wind protection, turning your deck or patio into a peaceful, cozy outdoor retreat.
4. Step-by-Step Installation Guide and Hardware Specifications
Following a precise, step-by-step installation plan ensures your shade sail is mounted safely and securely. Pre-drilling pilot holes into the centers of your rafters prevents the wood from splitting, which could compromise the strength of your anchor points. Using a heavy-duty drill bit matched to the core diameter of your lag bolts ensures the threads engage deeply into the solid wood grain.
When mounting hardware through shingles, always use thick butyl rubber washers and generous amounts of premium polyurethane sealant. This prevents water from seeping into the roof deck, keeping your attic and home interior completely dry and protected from leaks.
The following step-by-step guide details how to safely install your roof-mounted canopy:
Detailed Guide to Roof-Mounted Canopy Installation
- Identify and Mark the Rafters: Use a stud finder or inspect the eaves to locate the exact centers of your wood rafters. Mark these spots clearly on the exterior fascia board or roof deck.
- Pre-Drill the Pilot Holes: Use a high-speed drill to create pilot holes into the rafter centers. Pre-drilling prevents the timber from splitting when the lag bolts are driven in.
- Apply Waterproof Flashing: Place a thick layer of butyl rubber flashing tape over the marked area. This forms a tight, waterproof gasket around the bracket as it is secured.
- Secure the Anchor Brackets: Mount your stainless steel fascia bracket over the sealant, and drive in heavy-duty lag bolts using a ratchet wrench. Apply a generous layer of UV-resistant silicone caulk over the bolt heads.
- Tension the Shade Sail: Connect your turnbuckles to the canopy corner rings and roof anchors. Tighten each turnbuckle evenly until the sail is flat and taut, and attach safety chains as a secure backup.
After a successful DIY installation, you can unwind and enjoy your newly shaded patio with a refreshing tropical beverage made from fresh green coconut water, or learn about the healthy differences between coconut water vs coconut milk. Many homeowners also ask about the best time to drink coconut water to maximize hydration, and exactly how long does coconut water last when stored without preservatives. Exploring these natural, plant-based remedies is a wonderful way to embrace a healthy, eco-friendly lifestyle.
- Natural Material Expertise: COIRVIETNAM focuses on delivering premium, organically sourced coconut coir products crafted to the highest standards of durability and environmental sustainability.
- Comprehensive Engineering Support: Our dedicated team is happy to help you select the ideal sizes, weaves, and brackets for your home project.
- Clear Contact Support: Learn more and order custom natural fiber sails, mats, and garden products at CoirVietNam.Com
- Via Whatsapp at +84385967151
- Or by emailing coirvietnam@gmail.com.
FAQs
Will attaching a shade sail to my roof fascia cause structural damage?
Attaching heavy canopies directly to thin fascia boards can cause structural damage over time. To ensure a safe installation, your brackets must span across the fascia and connect directly into the solid wood centers of your roof rafters, transferring the tension safely to your home main structural frame.
How can I prevent rainwater from pooling on my roof-mounted canopy?
To ensure proper rain runoff, always install your canopy with a steep 20 to 30 degree slope between the high points on the roof and the low points on opposing posts. For tight spaces, a classic triangle shade sail is an excellent, highly recommended option, as its three-corner shape naturally channels water down the center to prevent pooling.
What is the best way to clean and care for a natural coir shade sail?
To care for your coir sail, occasionally hose it down with clean water to rinse away dust and dried leaves. Let the canopy dry completely in the sun before storing it, and always store it in a dry, well-ventilated space during the winter months to protect the natural fibers from dampness.
How do I adjust the tension on my roof-mounted shade sail?
You can easily adjust the tension using stainless steel turnbuckles on each corner. Tighten the turnbuckles until the fabric is flat and taut, and check the tension every few months to compensate for any natural stretching of the fibers over time.
